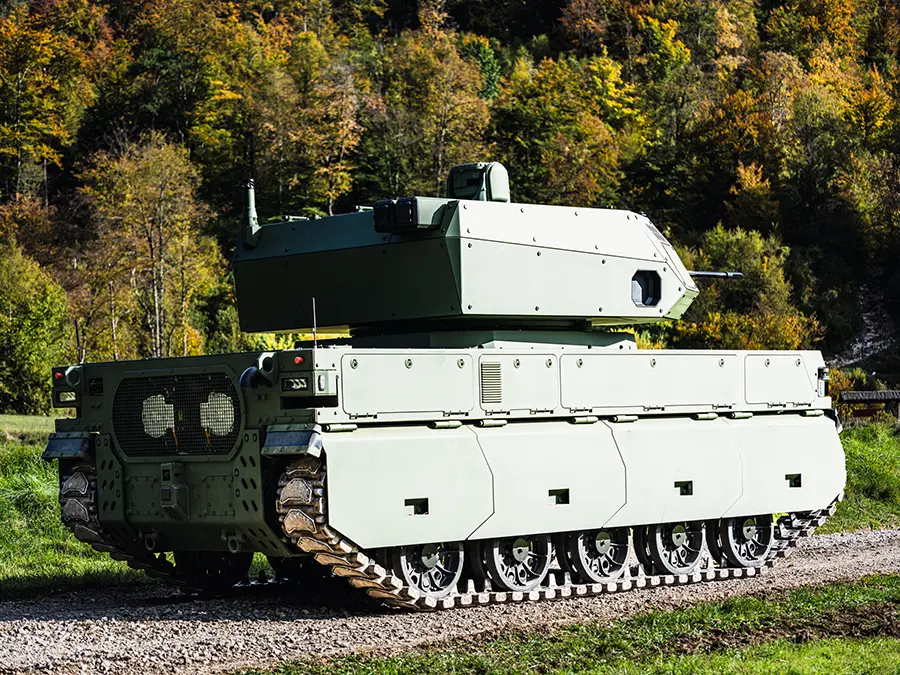

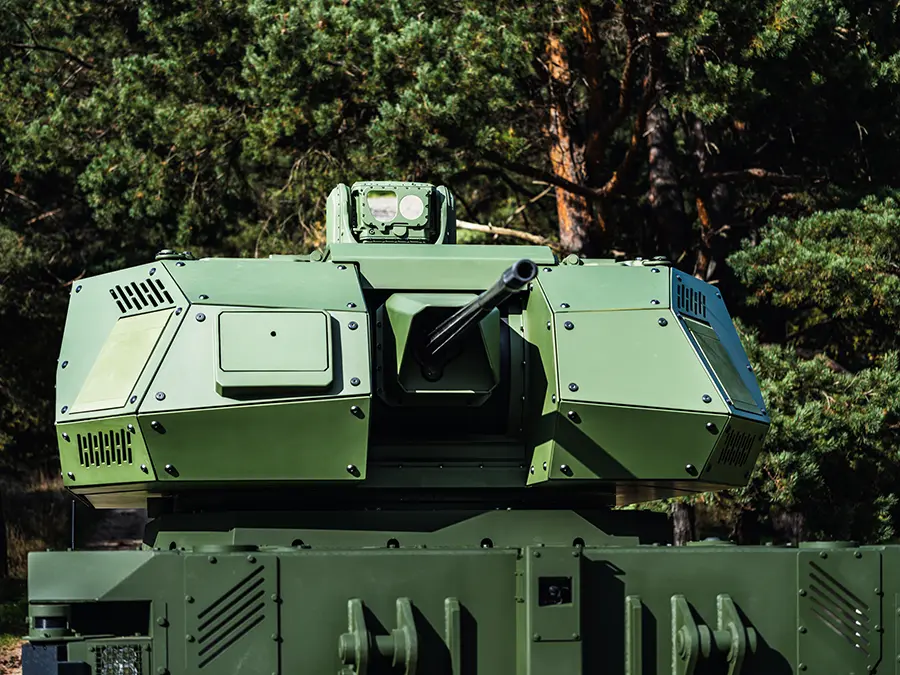

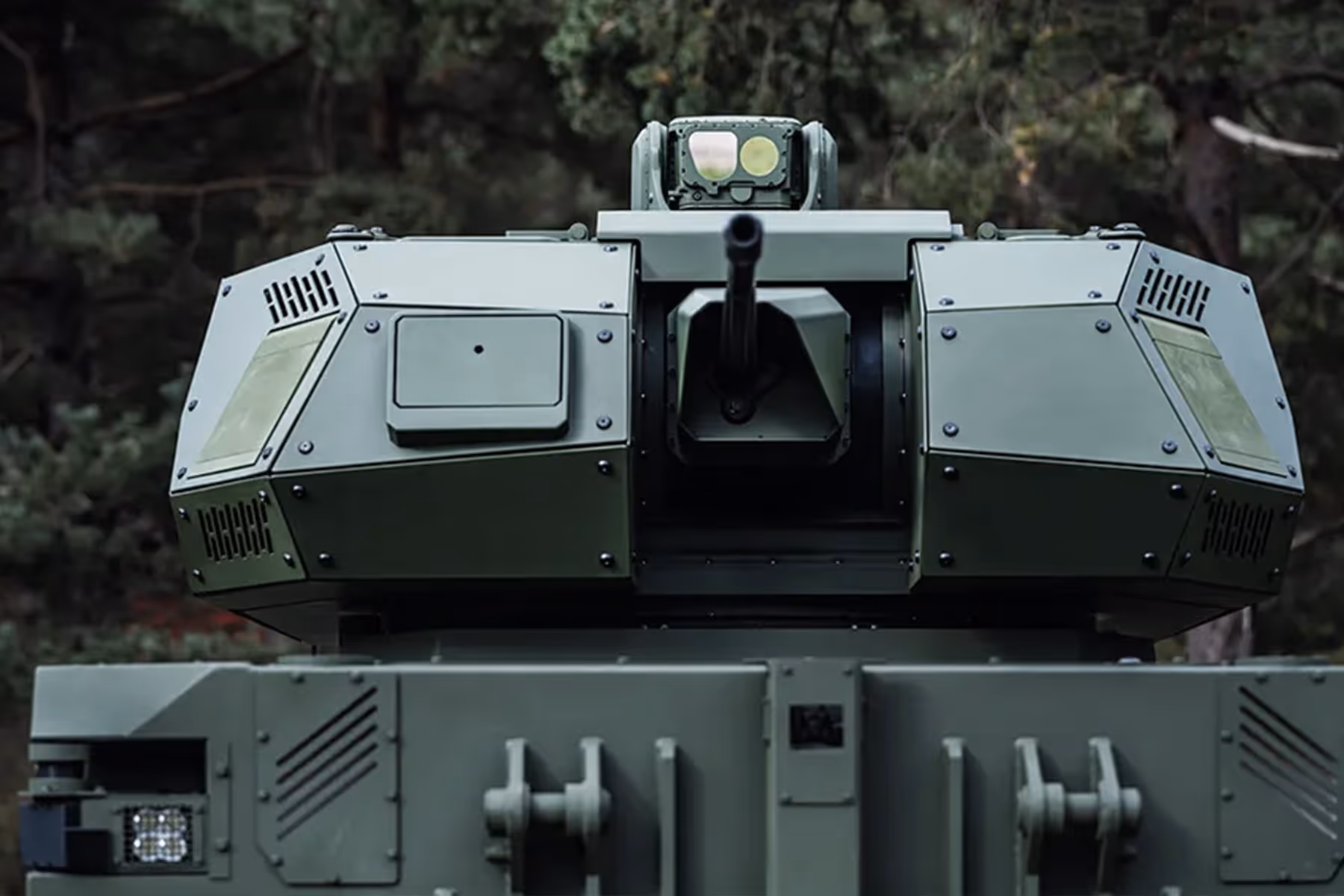

Mangart 25 AD
State-of-the-art SHORAD turret with 25×137 mm autocannon, Proximity Fuze Munition capability, AESA radar integration, and full C2 connectivity for networked air defence operations.
.avif)
.avif)
Technical Specifications
DIMENSIONS & MASS
Height 770 mm
Width 2303 mm
Length 2301 mm
Swing radius 2965 mm
Battle weight 2273 kg (depending on configuration)
ARMAMENT
Main cannon Rheinmetall KBA 25×137 mm, dual feed
Main ammunition 435 rounds (225/210)
Secondary armament Guided missles or drone interceptors
Alternatives KNDS M811 or Rheinmetall KBA
Munition types Proximity Fuze, HE, APFSDS, TP-T
PERFORMANCE
Elevation range +85° / -15°
Azimuth range n×360°
Max. speed AZ/EL >1 rad/s
Aiming accuracy <0.7 mrad
SYSTEMS
Fire control Automatic video tracker
Stabilisation 4-axis servo
Gunner's EO sight Day camera, thermal sensor, laser range finder, 2-axis stabilisation
Radars 2x Hensoldt Spexer 2000 (S Panel), optional upgrade to 3 for 360° coverage
Meteo station Yes
IFF Yes
INS with GNSS Yes
Ballistic protection for critical components STANAG 4569 Level 1
Smoke grenade launchers 2×4 76 mm (upgrade)
EMC MIL-STD-461G
Environmental MIL-STD-810G
