MIDGARD 134

MIDGARD 134

Stabilised
Day / Night
Wheeled vehicle
Tracked vehicle
Fire Support

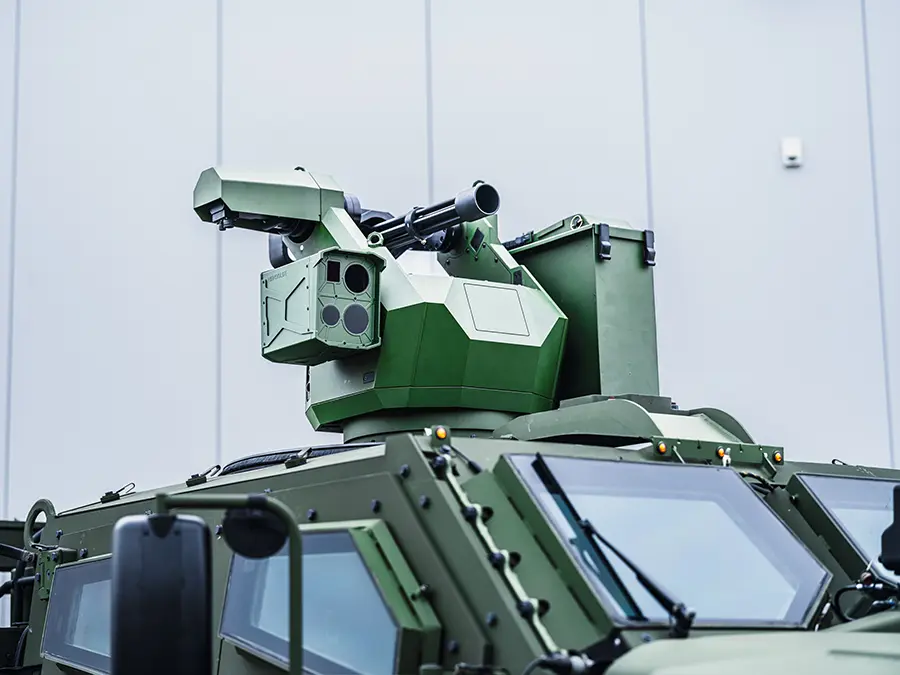

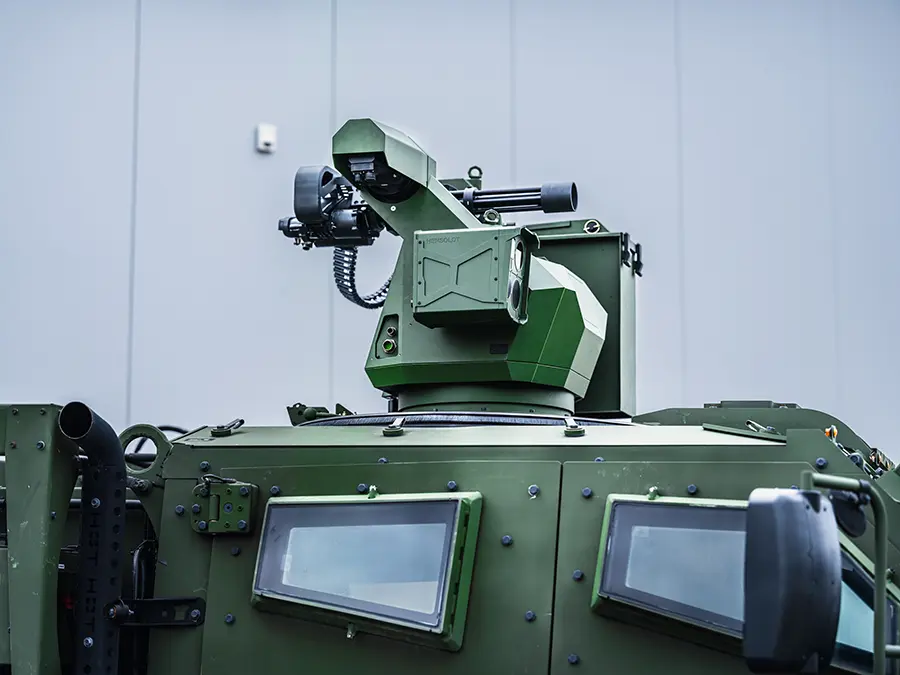

Midweight RCWS configured for the M134 Gatling gun indirect fire mission.

Technical Specifications

DIMENSIONS & MASS

Height 830 mm

Width 1280 mm

Length 1200 mm

Swing radius 650 mm

Weight 260 kg

Weight of whole system (depends on number of rounds) 375 kg

ARMAMENT

Main weapon 7.62x51 M134D

Ammunition capacity 3000 rounds (7.62x51)

PERFORMANCE

Elevation range +60° / -10°

Azimuth range n×360°

Angular speed 115°/s

Positioning accuracy <0.7 mrad

Operating temperature -32°C / +55°C

SYSTEMS

Stabilisation Gyro stabilization

Fire control Computer with advanced functionalities

Target tracking Automatic

Imaging Day and night

Laser range finder Yes

Last ammunition warning Yes

Shoot-on-the-move Yes (stationary or moving targets)

Radar integration Possible

Super elevation Yes

C-UAS ready Yes

Ballistic protection STANAG 4569 Level 1

EMC MIL-STD-461G

Environmental MIL-STD-810G
