MIDGARD 40

MIDGARD 40

C-UAS
Stabilised
Day / Night
Wheeled vehicle
Tracked vehicle
Light vehicle
40 mm
Fire Support

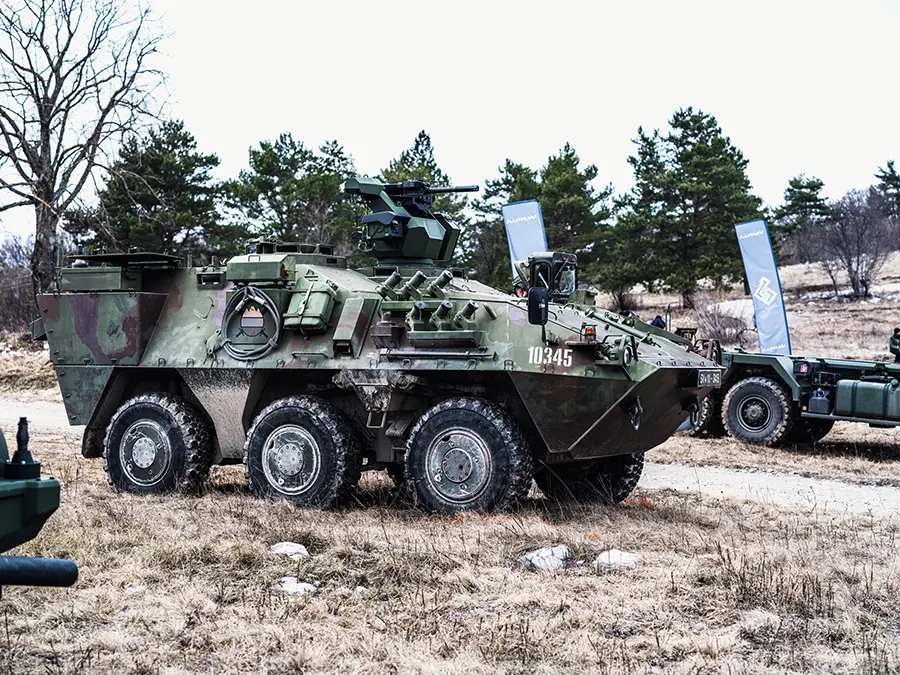

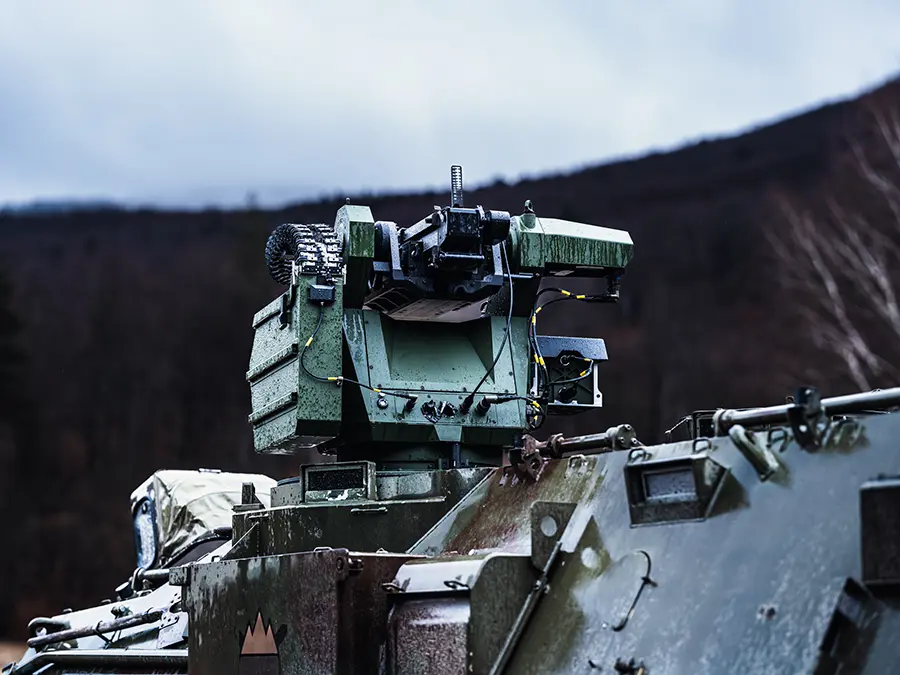

Midweight RCWS armed with the 40×53 mm GMG grenade machine gun. C-UAS ready, gyro-stabilised, and capable of engaging stationary and moving targets on the move.

No items found.

Technical Specifications

DIMENSIONS & MASS

Height 795 mm

Width 1100 mm

Length 1180 mm

Swing radius 735 mm

Weight (without gun and ammunition) 215 kg

Weight of the whole system 290 kg

ARMAMENT

Main weapon 40×53 GMG 40

Ammunition capacity 96 rounds (40×53)

PERFORMANCE

Elevation range +75° / -10°

Azimuth range n×360°

Angular speed 115°/s

Positioning accuracy <0.7 mrad

Operating temperature -32°C / +55°C

SYSTEMS

Stabilisation Gyro stabilization

Fire control Computer with advanced functionalities

Target tracking Automatic

Imaging Day and night

Laser range finder Yes

Last ammunition warning Yes

Shoot-on-the-move Yes (stationary or moving targets)

Radar integration Possible

Super elevation Yes

C-UAS ready Yes

Ballistic protection STANAG 4569 Level 1

EMC MIL-STD-461G

Environmental MIL-STD-810G
