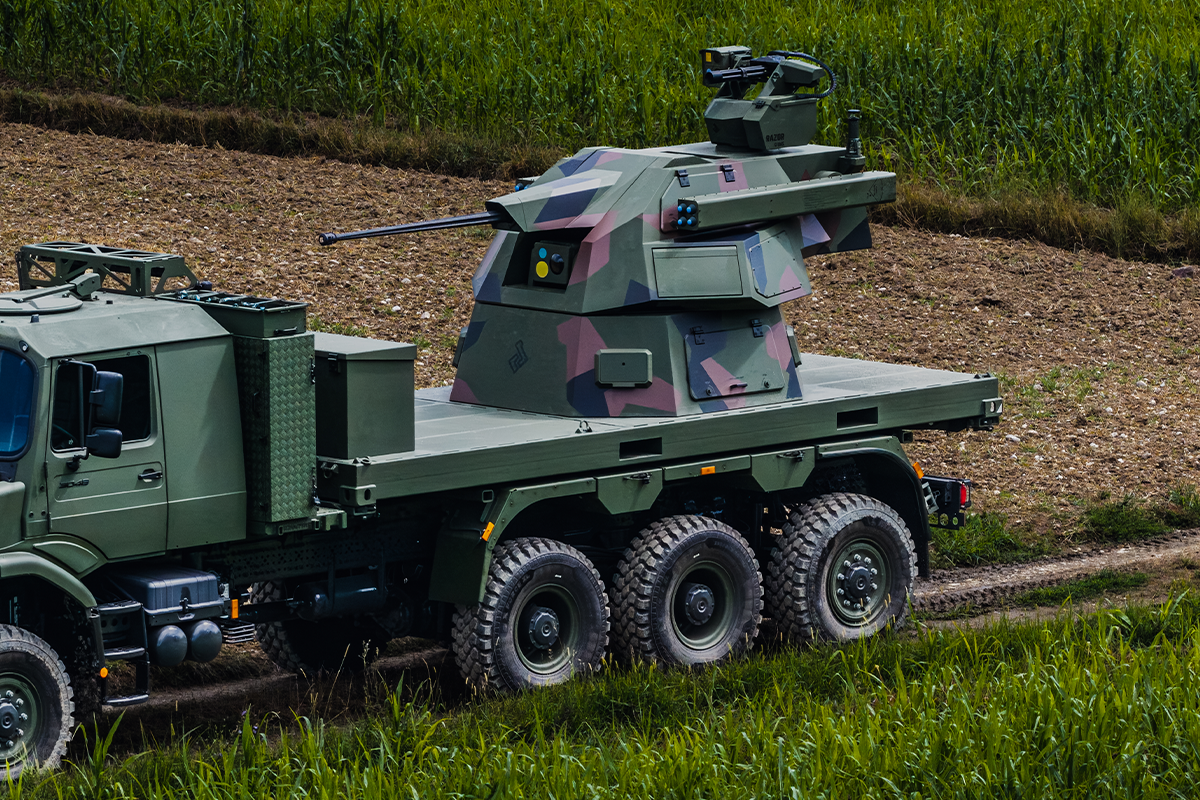

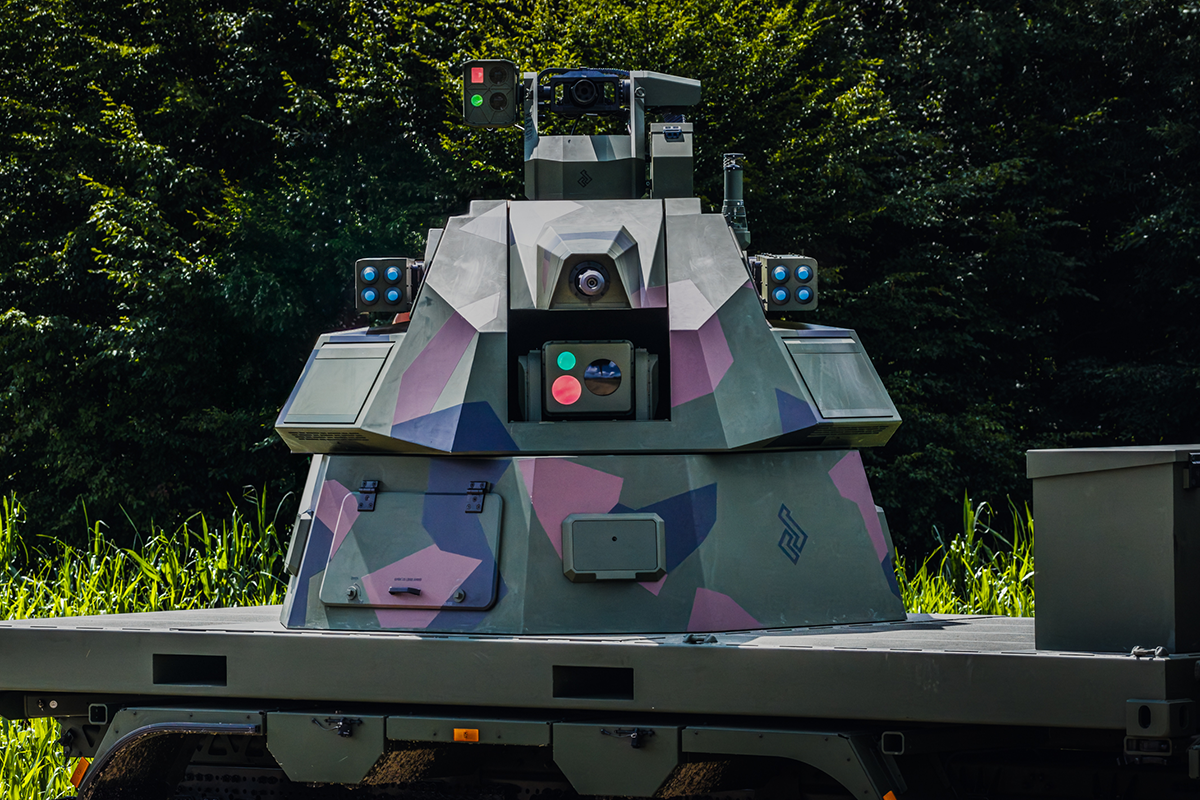

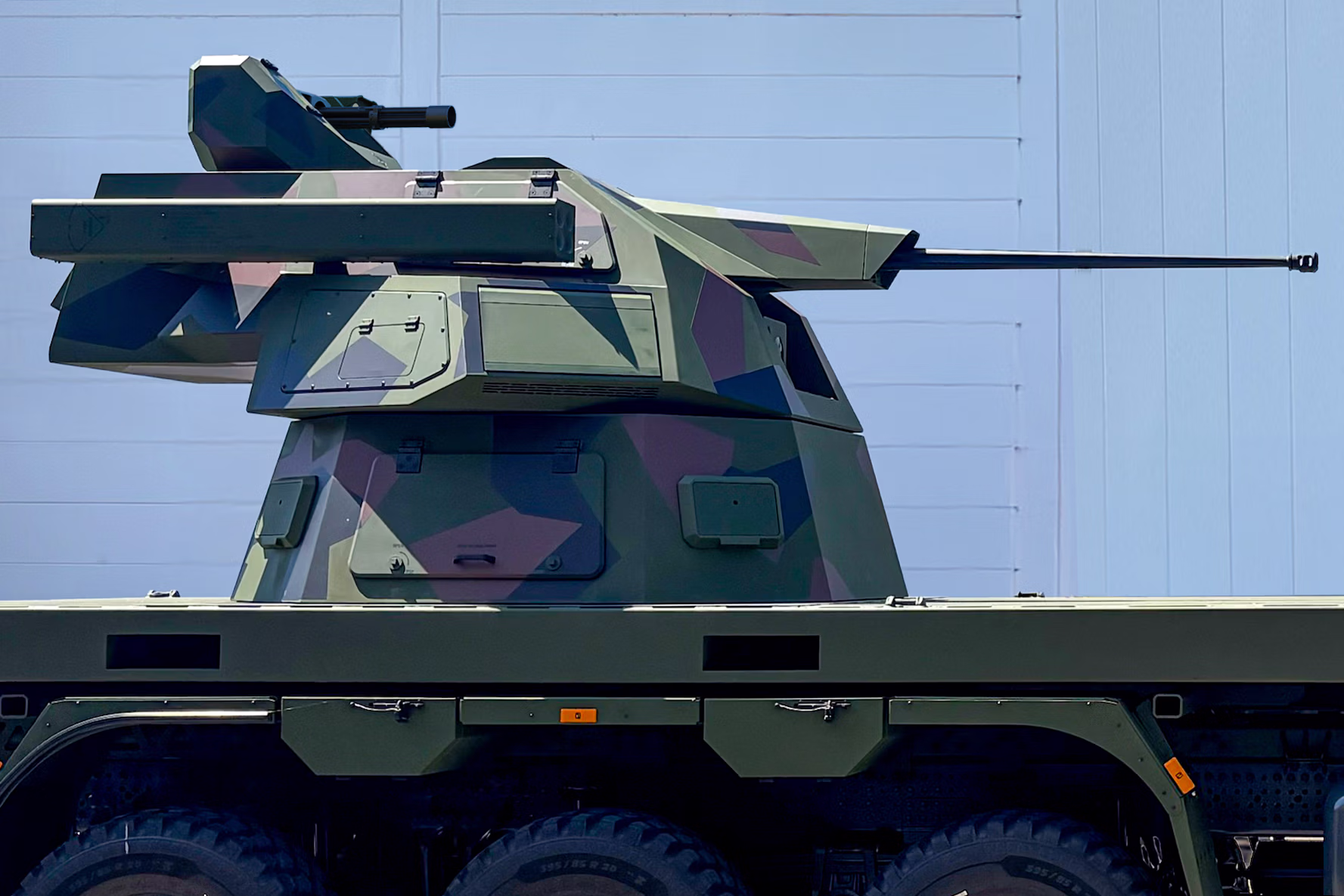

Skythunder 300

Skythunder 300

Air Burst Ammunition

Day / Night

Wheeled vehicle

Tracked vehicle

30 mm

Fire Support

Stabilised

Multi-Spectrum Air Defence Remote-Controlled Turret, C-UAS ready

Technical Specifications

No items found.

Technical Specifications

DIMENSIONS & MASS

Height 920 mm

Width 2455 mm

Length 2860 mm

Swing radius 2820 mm

Total combat weight 2500 kg

ARMAMENT

Armament	Ammunition capacity	Effective range
NG MK44S Bushmaster 30×173 mm	400 rounds	Bigger drones up to 2500 m
Dillon M134D Minigun 7.62×51 mm	1000 rounds	Small drones up to 1000 m
Laser Guided Rockets 70 mm	8 rockets	Larger threats up to 6000 m

PERFORMANCE

Elevation range +80° / -10°

Azimuth range n×360°

Positioning accuracy <0.7 mrad

Angular speed 75°/s

SYSTEMS

Advanced feature Independent Commander RCWS

Fire controlComputer with advanced functionalities

Target trackingAutomatic

Electro optical sight Full-HD day sensor, Full-HD IR sensor, MWIR, laser range finder, 2-axis stabilized (Commander & Gunner)

Radars Full 360° coverage – 3x Hensoldt Spexer 2000 (Medium panel)

Sensors Full 360° coverage Identification Friend or Foe (IFF)

Hunter-killer capability Yes

Air Burst Munition Yes

‍
