Valhalla Turrets at DSEI 2017
a strong partner of the defense engineering services

From 12 to 15 September 2017, Valhalla Turrets was showcasing its products and capabilities at the DSEI 2017 - one of the most important defence and security shows.
Underscoring its reputation as a reliable partner to the worldís most demanding defence companies, at DSEI 2017 the Valhalla Turrets was unveiling the following products and technologies at the stand S6-280:

-Midgard 127, a versatile, high-precision, remotely controlled weapon station

-Asgard 30, extremely roboust,versatile, one-man turret

-Hildgard 57 , conceptual compact mobile gun system in the calibre 57x348

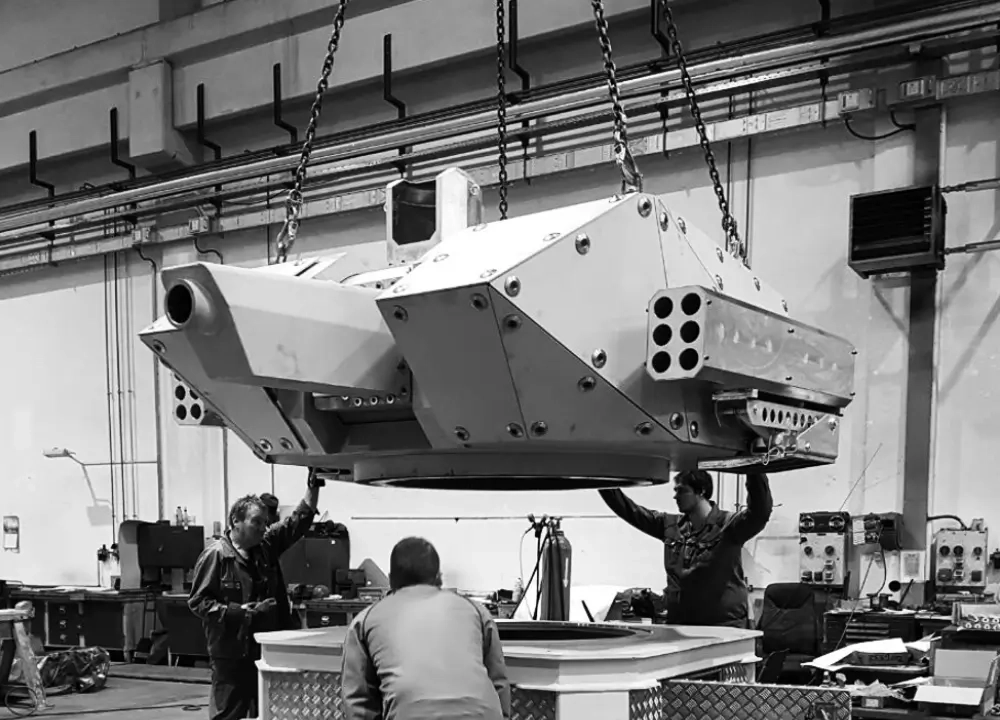

Asgard Light tactical turret

Supports multiple weapons, including 30mm Weapons (30x113). The Asgard LTT (Light Tactical Turret) is operated by one person in the turret or fully remotely from the vehicle and provides ground fire support for Light Armored Vehicles (LAV), MRAP Vedicles and Infantry Combat Vehicles (ICV).
Turret is available in several configurations-depending on customer requirements, from semi-manual option to fully remote control and stabilized option.

WEAPONS

Main weapon (one of the following)

-ATK M230 LF (30x113)
-Rheinmetall KAE (20x128)
-Zastava M55 (20x110)
-FN M2  (12,7x99)
-Zastava M02 Coyote (12,7x108)
-KPVT 14,5x114
-MK 19 (40x53)
-Nexter M621 (20x102)

Coaxial weapon (one of the following)

-FN M240C (7.62x51)
-Zastava M86 (7,62x54R)
-FN Minimi (5.56x45)
-H&K MG-5 (7.62x51)
-H&K MG-4 (5.56x45)

Ammo ready for use:

30mm: 200 rounds
7,62mm: 1000 rounds
or
12,7mm: 400 rounds
7,62mm: 1000 rounds

Smoke Grenades

5 fixed tubes

TECHNICAL SPECIFICATIONS

-Length: 1530mm
-Width: 1400mm
-Height: 635mm
-Weight: 700Kg + (depend on level of armor protection)
-Elevation: +45deg (+60)/-10deg
-Traverse: 360deg
-Armor protection: STANAG 4569 level 1 or 2 (with add-on plates level 3)
-Armor material: Armas Protac 500, 600 or Protac Special
-Power supply: 24V DC (battery or vehicle power supply - no slip ring in basic configuration)
-Stabilization: optional
-Anti-spall Liners: optional
-Smoke extraction through double fan system

Aiming option:

-Direct optical system
-Day/Night Essential performance optical system
-Day/Night Hi-End optical system with FCS included

ADVANCED FEATURES

-Turret has electric drive for azimuth and electric or manual system for elevation
-Excellent replacement for 40/50 type of turrets
-All ammunition and weapons inside of a turret
-All reloadingís and services under the armor
-Very affordable price
-Non-demanding training for combat use
-Extremely easy to install and maintain
-No vehicle penetration
-Low weight makes it feasible for amphibious applications
-In an emergency turret can be manually operated.

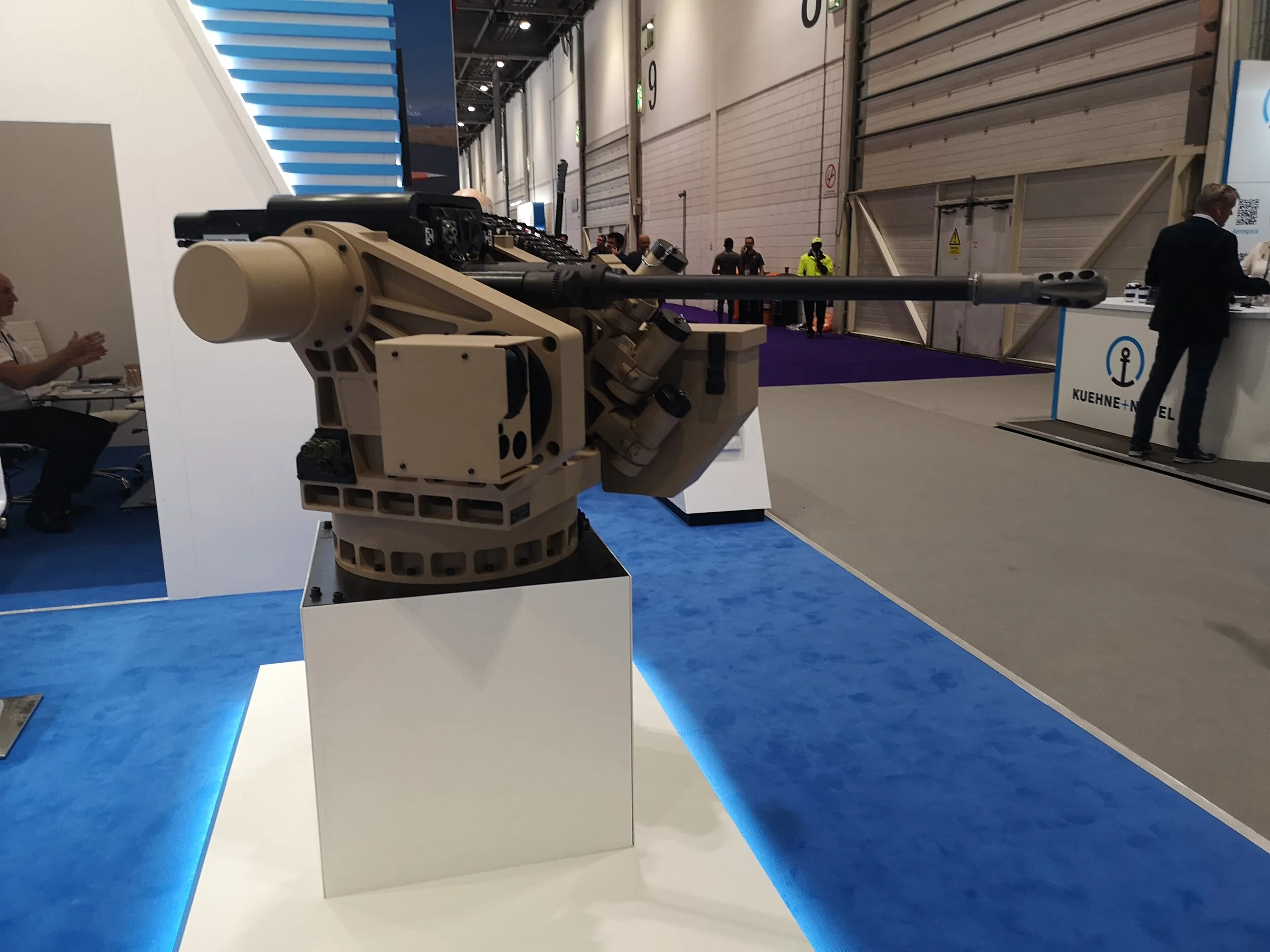

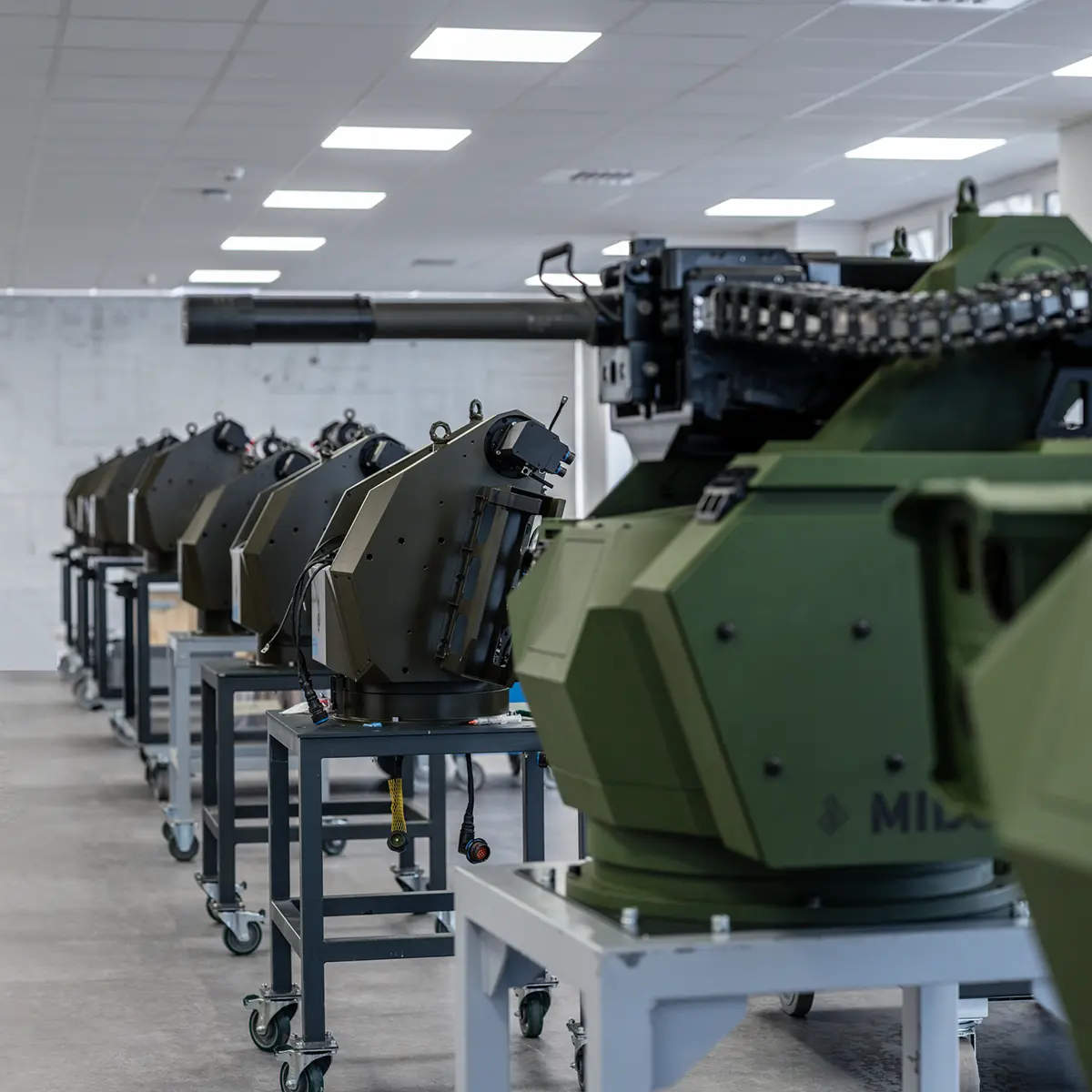

Midgard
Remote Control Weapon Station

Supports multiple weapons, including 30mm weapons (30x113). The Midgard is a single or dual weapon RCWS operated by one person fully remotely from the vehicle and provides ground fire support for all type of Armored Vehicles.
Turret is available in several configurations-depending on customer requirements.

Midgard 30

WEAPONS

Main weapon (one of the following)

ATK M230 LF (30x113 )
Rheinmetall KAE (20x128)
Zastava M02 Coyote (12,7x108)
FN M2 (12.7x99)
MK 19 (40x53)
Nexter M 621 (20x102)

Coaxial weapon (one of the following)

FN M240C (7.62x51)
Zastava M86 (7,62x54R)
FN Minimi (5.56x45)
H&K MG-5 (7.62x51)
H&K MG-4 (5.56x45)

Ammo ready for use

12,7mm: 500 rounds
30mm: 230 rounds
7,62mm: 1200 rounds

Smoke Grenades

4x2 fixed tubes

TECHNICAL SPECIFICATIONS

-Length: 700mm
-Width: 650mm
-Height: 890mm
-Weight: 150-300Kg (depend on level of armor protection and gun configuration)
-Elevation: +60deg (+75deg optional)/-23deg
-Elevation speed: 60deg/sec
-Traverse: 360deg
-Traverse speed: 60deg/sec
-Stabilization: 2 axis
-Power supply: 24V/28V DC

ADVANCED FEATURES

-Extremely robust design
-Low weight makes it feasible for all kind of applications
-Very affordable price
-No vehicle penetration
-Armor protection: STANAG 4569 level 1 or 2
-Armor material: Protac 500, 600 or Protac Special
-Scalable solution from single 7,62 machine gun to dual weapon configuration 30mm/7,62mm
-270deg protected optical sight
-Last round warning
-Automatic target tracking
-In an emergency weapon station can be manually operated.

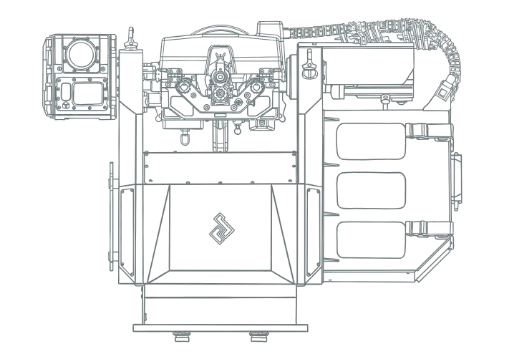

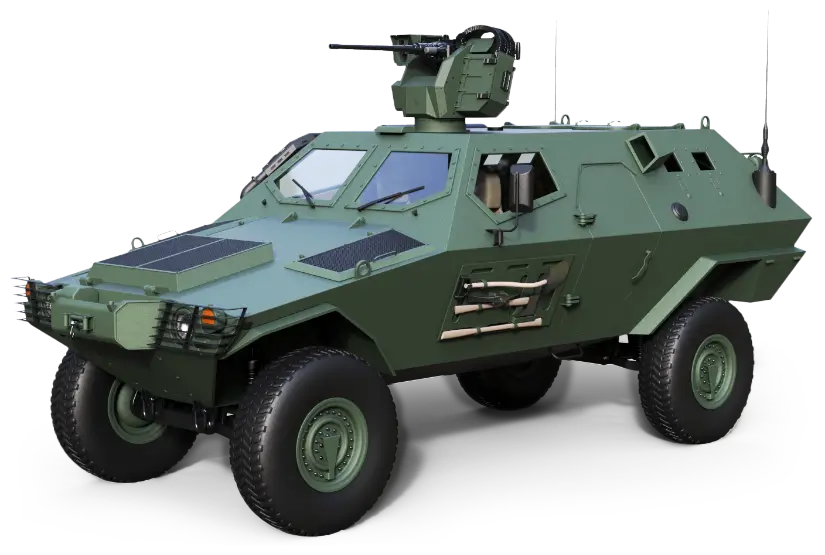

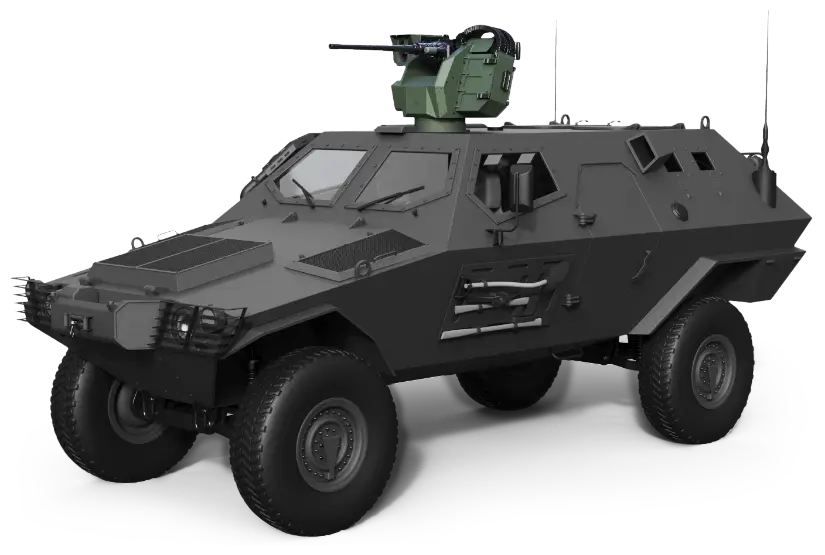

LOKI ultra LIGHT TACTICAL TURRET

The Loki ULTT (Ultra Light Tactical Turret) is operated by one person in the turret  and provides ground fire support for Light Armored Vehicles (LAV) and MRAP Vedicles.
Turret is available in several configurations-depending on customer requirements.




WEAPONS

Main weapon (one of the following)

-FN M240C (7.62x51)
-Zastava M86 (7.62x54R)
-FN Minimi (5.56x45)

Ammo ready for use

7.62mm: 700 ready to use rounds + 700stowed inside of the turret

Smoke Grenades

4 fixed tubes

TECHNICAL SPECIFICATIONS

-Length: 1120mm
-Width: 1000mm
-Height: 560mm
-Weight: 300Kg + (depend on level of armor protection)
-Elevation: +45deg (+60)/-20deg
-Traverse: 360deg
-Armor protection: STANAG 4569 level 1 or 2
-Armor material: Armas Protac 500, 600 or Protac Special
-Power supply: 24V DC (battery or vehicle power supply)
-Anti-spall Liners: optional
-Smoke extraction through double fan system

Aiming option

-Direct optical system
-Day/Night Essential performance optical system

ADVANCED FEATURES

-Turret has electric drive for azimuth and electric or manual system for elevation
-Excellent replacement for ligt armored vehicles improvised armor potected hatches.
-All ammunition and weapons inside of a turret
-All reloadingís and services under the armor
-Very affordable price
-Non-demanding training for combat use
-Extremely easy to install and maintain
